Q3200-RA
点击放大
Q3400-RA
点击放大
Q3401-RD
点击放大

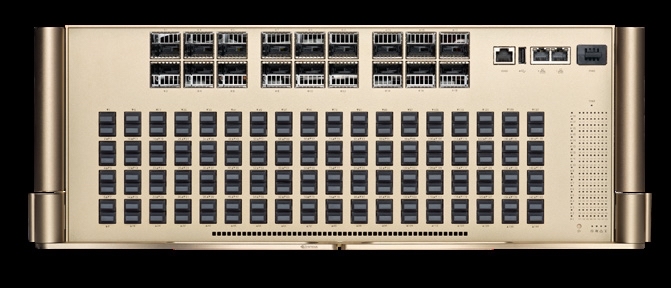

Q3450-LD
| Specification | Q3200-RA | Q3400-RA | Q3401-RD | Q3450-LD |
|---|---|---|---|---|
| Connectivity | Pluggable | Pluggable | Pluggable | MPO12 (Optics-only) |
| Performance | Two switches each of 28.8Tb/s throughput | 115.2Tb/s throughput | 115.2Tb/s throughput | 115.2Tb/s throughput |
| Switch radix | Two switches of 36 800Gb/s non-blocking ports | 144 800Gb/s non-blocking ports | 144 800Gb/s non-blocking ports | 144 800Gb/s, non-blocking ports |
| Connectors and cabling | Two groups of 18 OSFP connectors | 72 OSFP connectors | 72 OSFP connectors | 144 MPO connectors |
| Management ports | Separate OSFP 400Gb/s InfiniBand in-band management port (UFM) | Separate OSFP 400Gb/s InfiniBand in-band management port (UFM) | Separate OSFP 400Gb/s InfiniBand in-band management port (UFM) | Separate OSFP 400Gb/s InfiniBand in-band management port (UFM) |
| CPU | Intel CFL 4 Cores i3-8100H 3GHz | Intel CFL 4 Cores i3-8100H 3GHz | Intel CFL 4 Cores i3-8100H 3GHz | Intel CFL 4 cores i3-8100H 3GHz |
| Security | CPU/CPLD/Switch IC based on IRoT | CPU/CPLD/Switch IC based on IRoT | CPLD/Switch IC based on IRoT | CPU/CPLD/Switch IC based on IRoT |
| Software | NVOS | NVOS | NVOS | NVOS |
| Rack mount | 2U | 4U | 4U | 4U |
| Cooling mechanism | Air cooled | Air cooled | Air cooled | Liquid cooled (85%) Air cooled (15%) |
| Power Feed | 200-240V AC | 200-240V AC | 48-54V DC | 48V DC |
